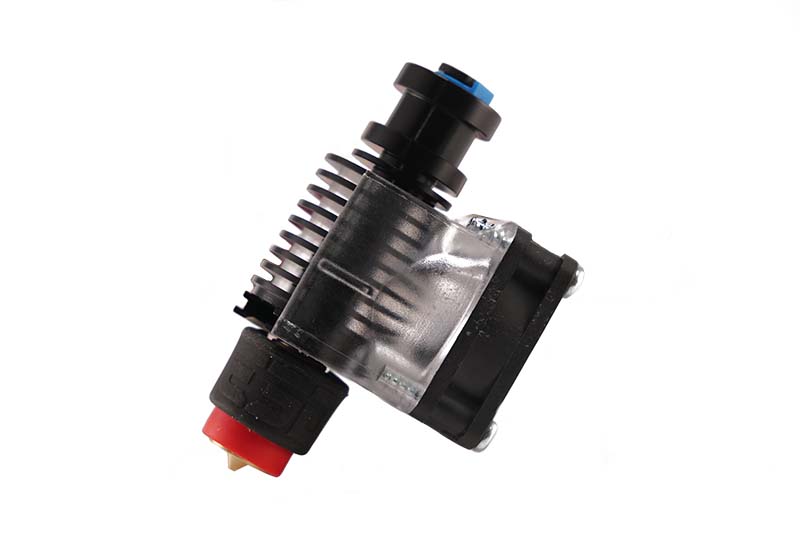

Revo Six is a drop-in replacement for your E3D V6 HotEnd, giving you all the benefits of E3D’s RapidChange Revo ecosystem in an easy-to-upgrade package.
- Same height, diameter, and mounting as the E3D V6 all-metal HotEnd
- No machine redesign needed - drops right into your existing setup
- Compatible with Revo Nozzles – swap nozzles at room temperature without tools or hot tightening
- Anodised black sink and crystal-clear fan mount with fan included
- Revo HeaterCore included for faster, safer heating
- Max temp: 300°C
- Filament diameter: 1.75mm
- Groove mount
- Voltage: 12V or 24V
- Power: 40W

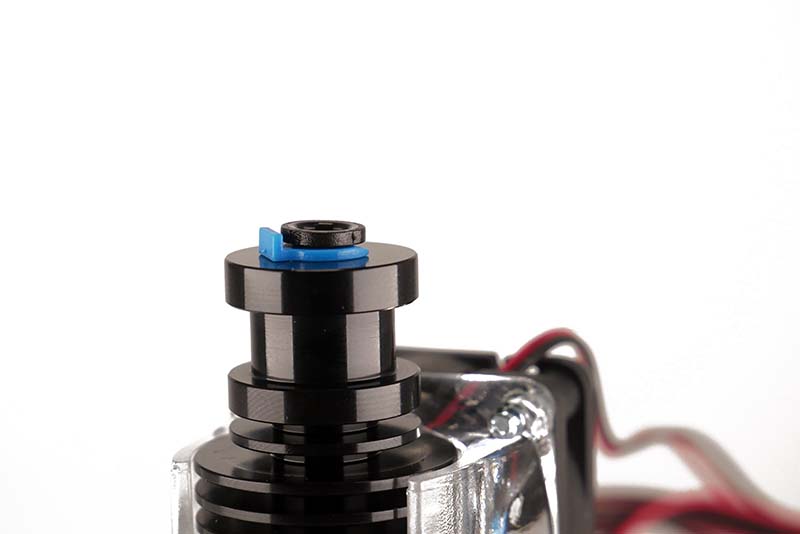

No machine redesign. Revo Six is a top choice if you want to update your old E3D V6 setup to the latest generation of E3D HotEnd technology. It has the same height, the same diameter, and the same groove mount as the E3D V6, so it drops straight into V6-fitted machines without the hassle of redesigning print head mounts and accessories. Just fit it, connect the Revo HeaterCore, and you’re ready to 3D print.
Ready for Revo. Revo Six is designed to work with Revo Nozzles, so you can perform nozzle swaps with your fingers at room temperature without complex tools or hot tightening. Each Revo Nozzle is factory sealed, making it much simpler to use and more reliable than most HotEnd technology available today.
Enhanced performance. Revo Six uses a Revo HeaterCore, our latest HotEnd heating and sensing architecture. It reaches temperature much faster than a traditional aluminium HeaterBlock, and it’s much safer: a positive temperature coefficient (PTC) means the HeaterCore can’t melt at extreme temperatures, reducing hazards in the event of a thermal runaway.

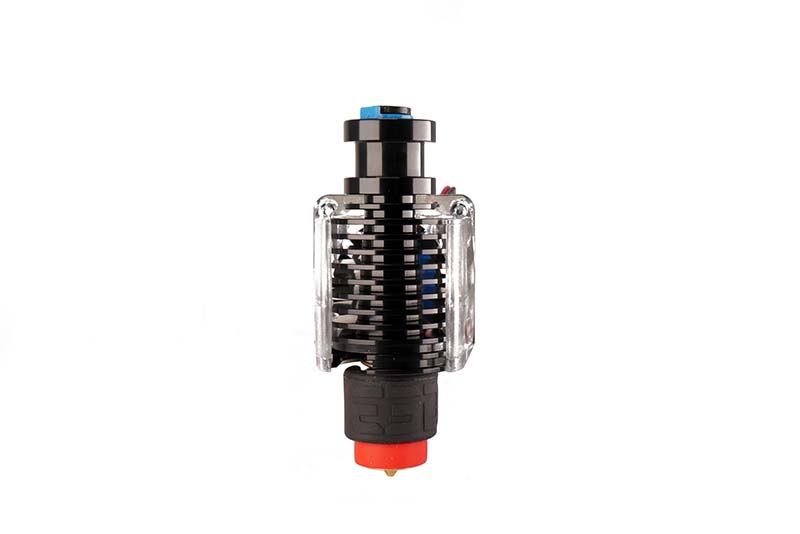

A new look. An anodised black heat sink distinguishes Revo Six from its predecessor, and every unit ships with a premium crystal-clear fan duct so your machine will stand out from the crowd.
Prusa i3 MK2/ MK3 (make sure you select the correct voltage for your setup)
Orders are expected to start shipping in March 2022.
- 1 x Revo Six heatsink
- 1 x Revo HeaterCore 12V or 24V
- 1 x Spring
- 1 x Extension cable kit
- 1 x 100mm PTFE tube
Single nozzle kit:
- 1 x 0.40 Brass Revo Nozzle
Fully loaded nozzle kit:
- 1 x 0.25, 0.40, 0.60 & 0.80 Brass Revo Nozzles
