Description
Revo High Flow ObXidian 500 nozzles pair E3D's most wear-resistant nozzle technology with High Flow internal geometry: at least 5 times more wear resistant than the popular ObXidian range, rated for printing at up to 500°C, and capable of significantly higher volumetric flow rates for fast abrasive printing. Compatible with all Revo HotEnds and coldsides.
Go with the higher flow

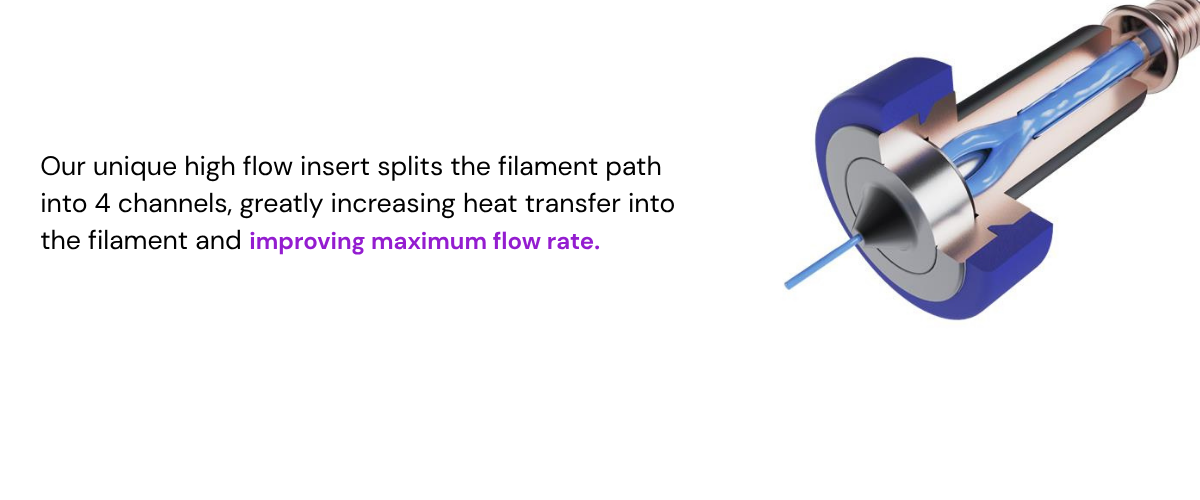

The innovative 4-channel internal geometry of this nozzle significantly improves heat transfer into the filament, allowing you to boost your volumetric flow rate. That means more reliable and consistent extrusion at the same speeds, or a higher volumetric flow limit in your slicer to use your motion system's capabilities fully.
High quality at high speed
High-speed printing often sacrifices visual and functional quality in favour of speed, but these nozzles maintain interlayer adhesion strength even at higher speeds, resulting in the perfect filament finish and strong parts for functional applications.
Unlock printing with the toughest filaments
Most abrasive materials simply won't wear an ObXidian 500 nozzle. Upgrade so you can print with any filament you like (including UV-reactive and glow-in-the-dark filaments) without endless maintenance.
Long lifespan nozzles
ObXidian 500 technology significantly extends nozzle life by making the primary wear points on the nozzle several orders of magnitude more wear resistant than other steel nozzles on the market. Better for your pocket, and the planet.
No more sticky situations
The coating applied to the nozzle has a low surface energy to prevent filament build-up. This makes it easier to clean the nozzle between prints, and drastically reduces the likelihood of print crashes and cosmetic defects in your prints.
Effortless upgrade
Each Revo Nozzle is a preassembled nozzle and HeatBreak in one unit, so there's no hazardous hot tightening and no chance of incorrect assembly. Say goodbye to frustrating HotEnd leaks and enjoy reliable 3D printing!
Building a new Revo setup? These nozzles pair with any of our Revo coldsides, such as the Revo Six Coldside, together with a Revo Starter Hotside Pack.
Please note
- While the nozzle itself is rated to 500°C, standard 40W and 60W Revo HeaterCores are temperature limited to 300°C. Printing up to 500°C requires E3D's Revo High Temperature hotside hardware.
- Revo Nozzles are not compatible with V6-style HeaterBlocks.
- ObXidian 500 nozzles are exceptionally wear resistant and significantly outperform other hardened nozzles, but some 'exotic' engineering filaments with aggressive fillers, including but not limited to Polymaker's Fiberon range, can still cause significant wear even on ObXidian 500 nozzles under extreme material conditions.
- Some filled materials contain particles that are close to, if not larger than, some of the smaller industry-standard nozzle sizes, including up to 0.4mm. Attempting to print such materials through these nozzle sizes significantly increases the risk of a jam. Check your filament manufacturer's datasheet for the recommended minimum nozzle orifice diameter to ensure the nozzle you choose suits your use case.
Specifications
- Filament diameter: 1.75mm

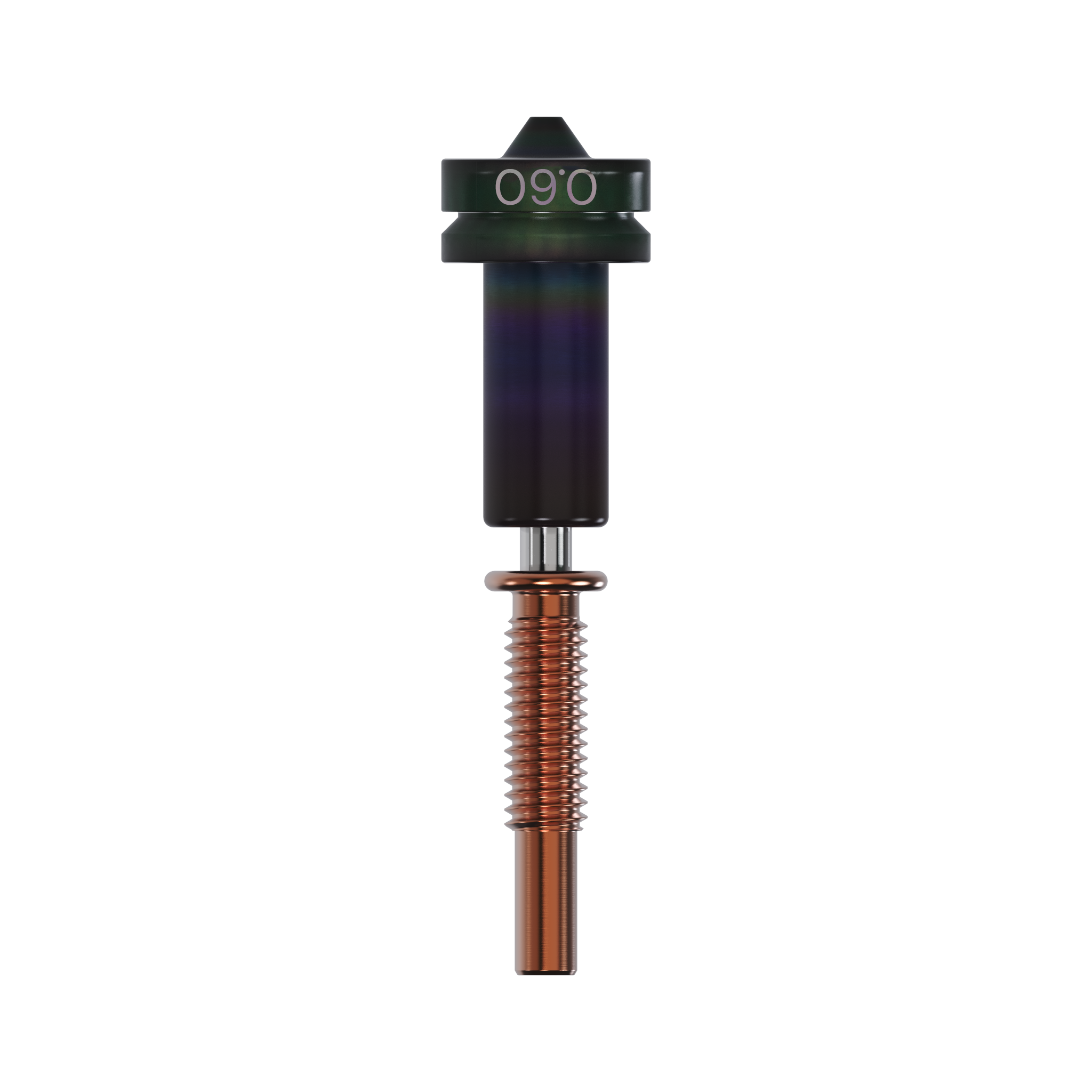

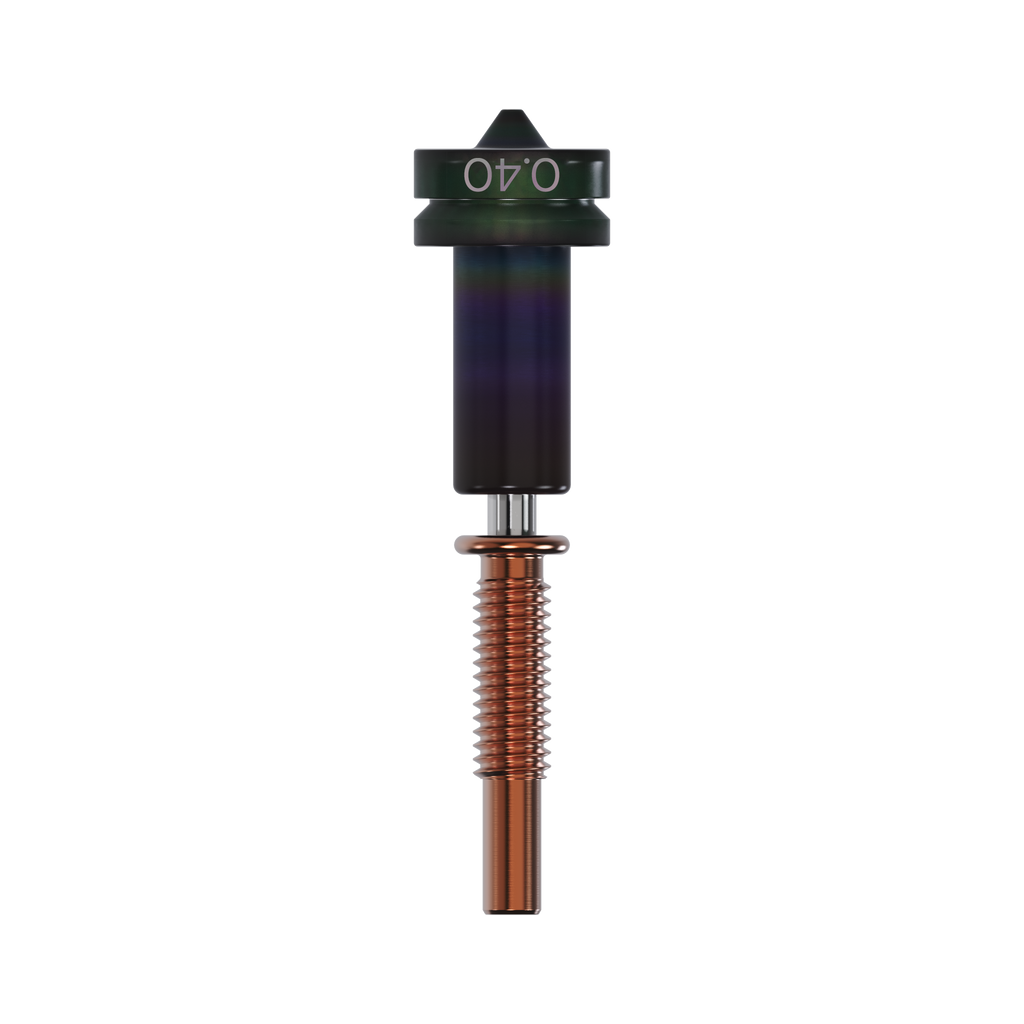

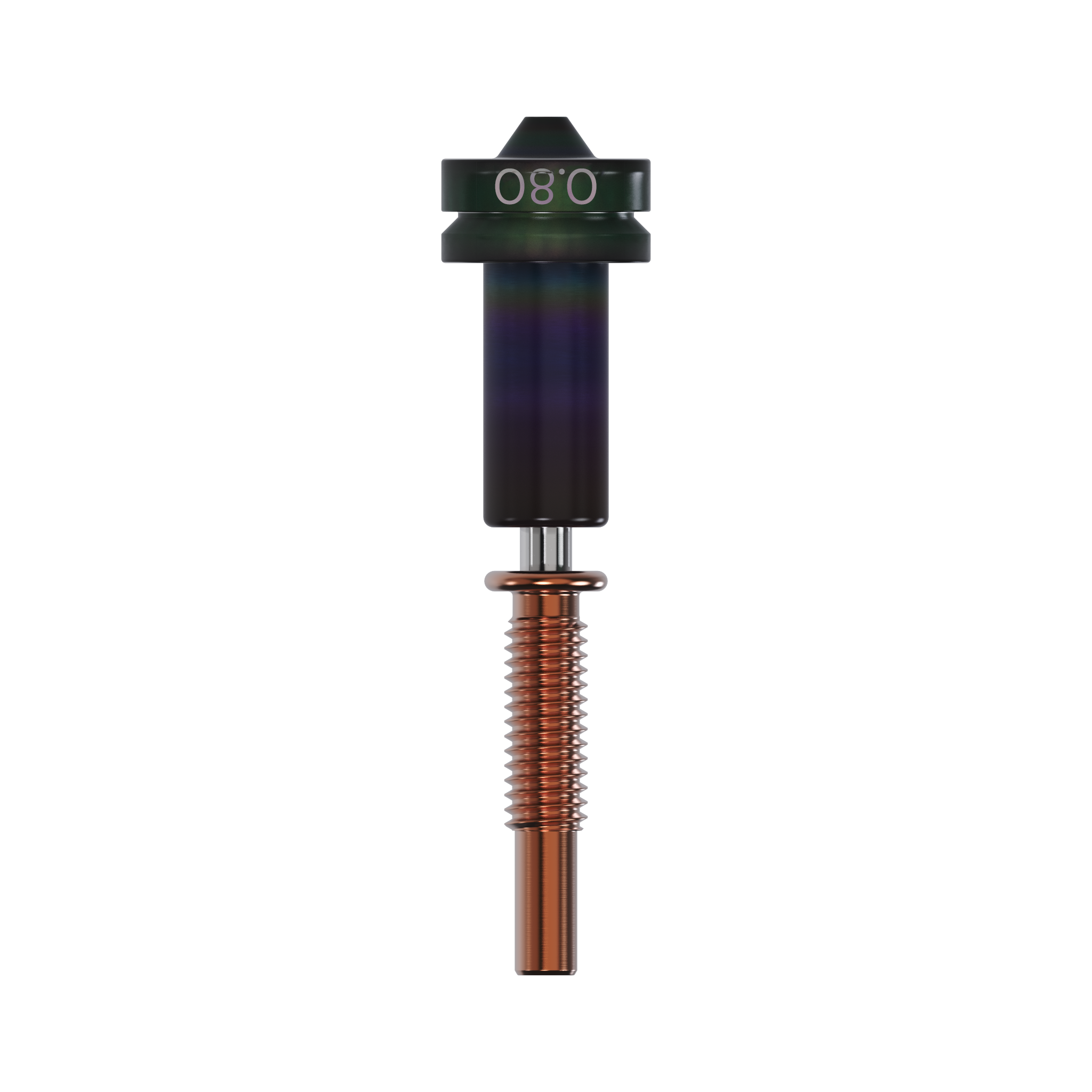

- Nozzle diameters available: 0.40mm, 0.60mm, 0.80mm
- Maximum printing temperature: 500°C (limited to 300°C with standard 40W/60W HeaterCores)
- At least 5 times more wear resistant than the standard ObXidian range
- High Flow 4-channel internal geometry for increased volumetric flow rate
- Low surface energy coating reduces filament build-up; preassembled with integrated HeatBreak
- Compatible with all Revo HotEnds and coldsides; not compatible with V6-style HeaterBlocks
Full installation guides and datasheets: E3D Revo High Flow ObXidian 500 documentation.
