Description
Push your printer's print speed to its limits with the Revo High Flow Hotside Pack. The High Flow brass Revo Nozzles boost flow rates by around 70% over standard Revo nozzles while keeping the same form factor, and the 60W HeaterCore delivers the extra heating power to match.
The flow boost comes from E3D's patented internal nozzle geometry, which increases surface area inside the nozzle and improves thermal transfer into the filament — so you can print fast and big without changing anything else about your setup.
Key features
- Speed-focused printing, out of the box
- ~70% flow rate boost with patented High Flow technology
- Brass High Flow nozzles for everyday high-flow printing
- 60W HeaterCore for peak performance
- Bonus essentials included: 0.4mm brass nozzle and a Fully Loaded Sock Pack
Printing abrasive, fibre-filled materials? Pair the 60W HeaterCore with Revo High Flow ObXidian nozzles for wear resistance at high flow rates.
Complete your HotEnd
A hotside pack is one half of a Revo HotEnd. If you don't already own a Revo, you'll also need a Revo coldside: choose from Revo Six, Revo Creality, Revo Prusa or Revo Voron.
Specifications
- Voltage: 24V
- HeaterCore power: 60W
- Flow rate: approximately 70% higher than standard Revo brass nozzles
- Nozzles: High Flow brass, 0.4mm and 0.6mm, for 1.75mm filament
- Compatible with: all RapidChange Revo coldsides

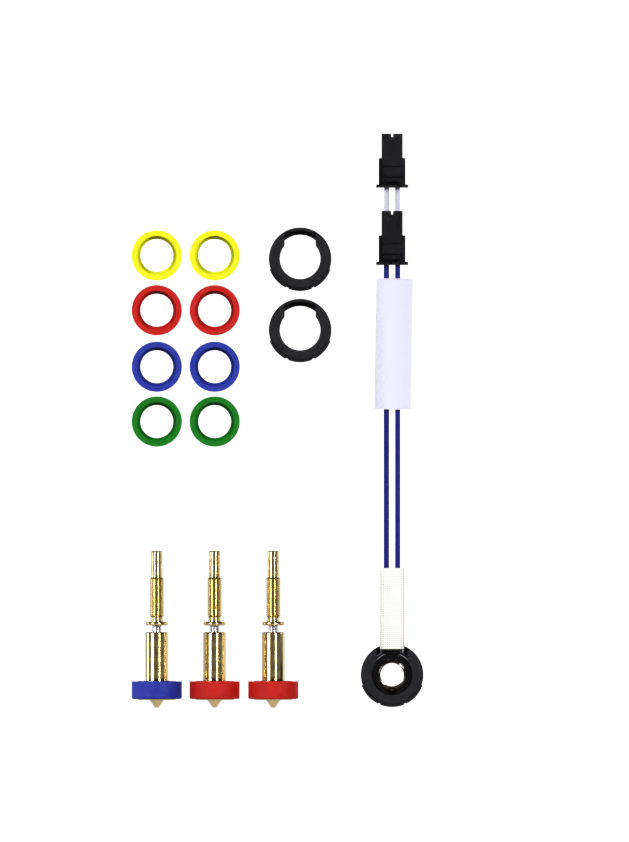

Contents
- 1 x Revo High Flow Brass Nozzle 0.4mm
- 1 x Revo High Flow Brass Nozzle 0.6mm
- 1 x Revo HeaterCore 60W 24V
- 1 x Revo Brass Nozzle 0.4mm
- 1 x Revo Fully Loaded Sock Pack
Full installation guides and datasheets: E3D Revo High Flow nozzle documentation and E3D 60W HeaterCore documentation.
