Description
Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 16-TSSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 16-SOIC. Solder your chip to either side and you're ready to rock on any solderless breadboard.

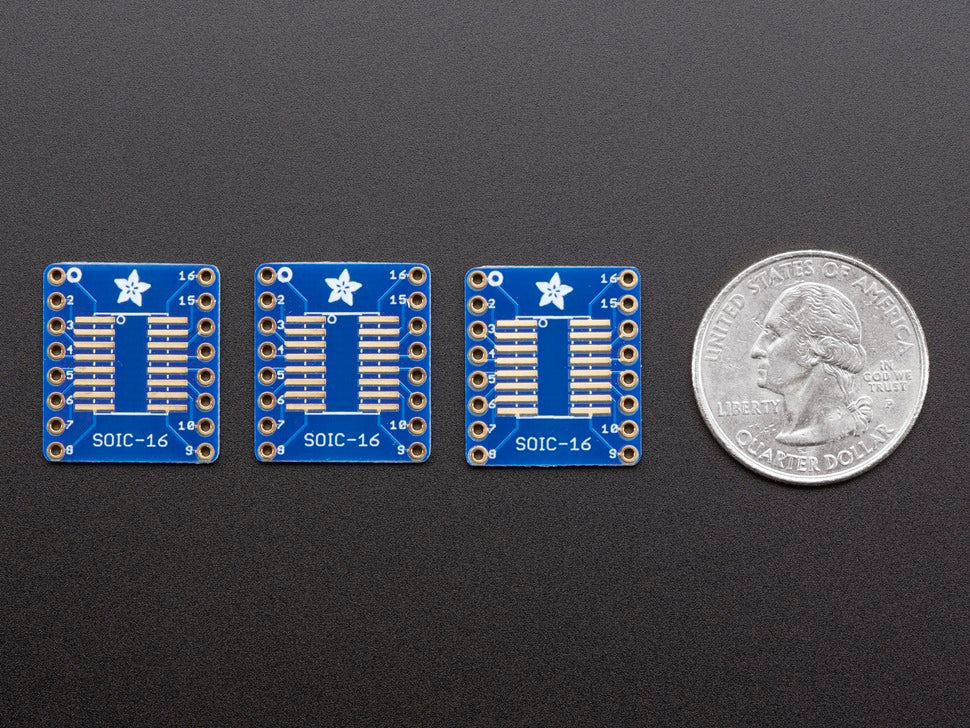

Each item comes with three PCBs, each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. Standard thickness PCBs, with 0.6" spacing between the two rows. You can, of course, use a smaller chip but the pin numbering won't be right - so use care.
Specifications
- Compatible packages: SOIC-16 (narrow, medium or wide) or TSSOP-16
- Row spacing: 15.24mm / 0.6"
- Hole pitch: 2.54mm / 0.1"
- Quantity: 3 PCBs per pack
