Description

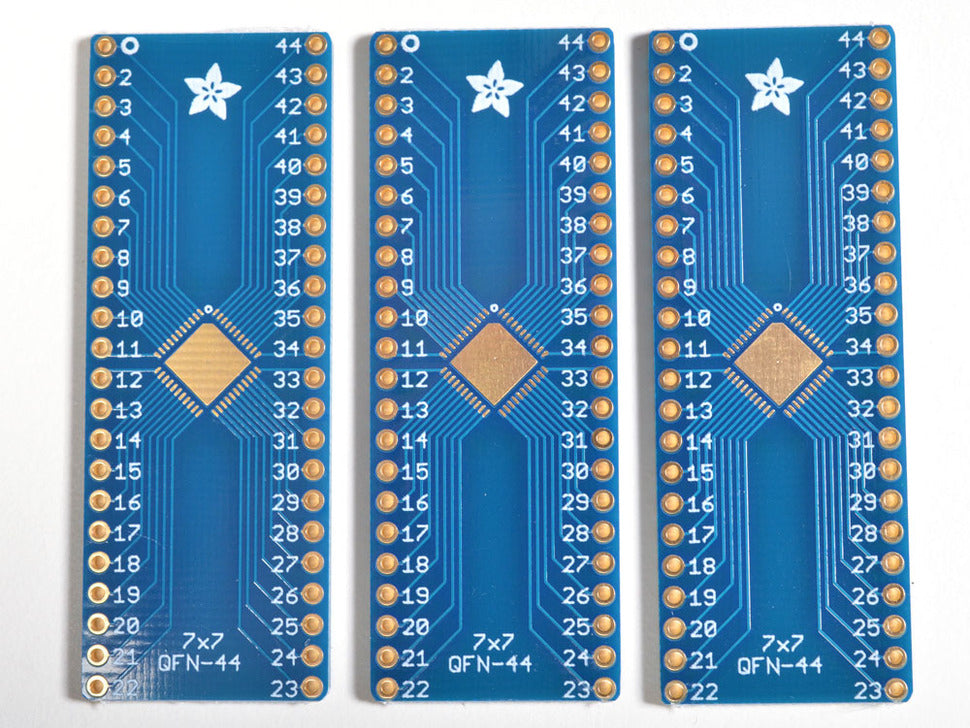

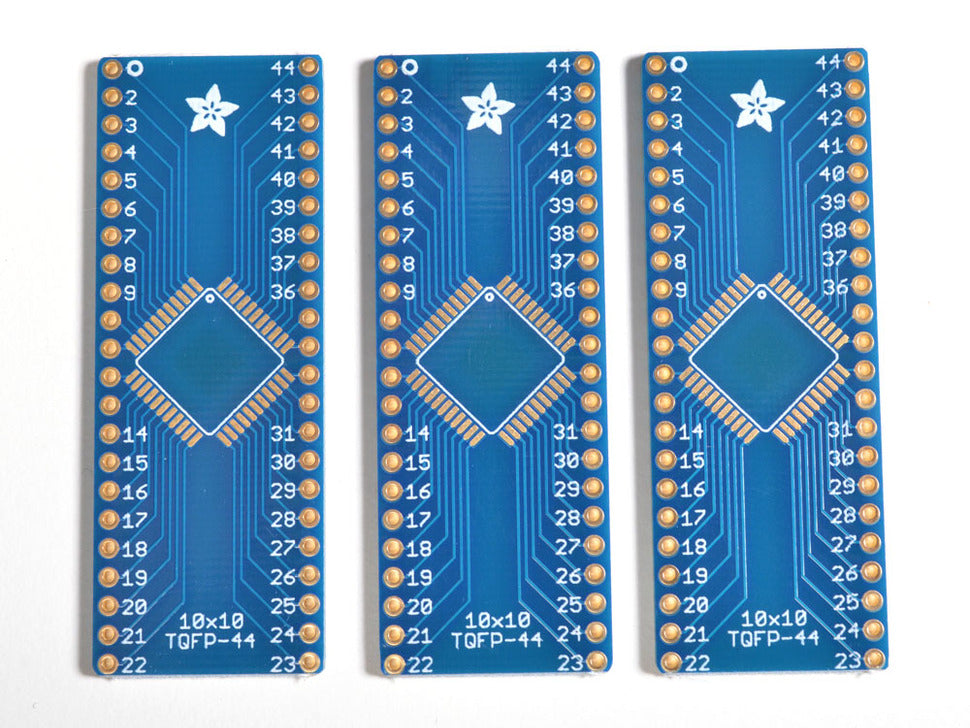

Beguiled by a fancy new chip that is only available in a QFP or QFN pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 44-QFP pin out with traces going to two rows of 0.1" spaced holes, the other has 44-QFN. Solder your chip to either side and you're ready to rock on any solderless breadboard.
Each item comes with three PCBs, each PCB is identical and can support either a 10mm square QFP or 7mm square QFN chip. Standard thickness PCBs, with 0.7" spacing between the two rows.
Specifications
- Compatible chip sizes: 10mm square (44-TQFP) or 7mm square (44-QFN)
- Row spacing: 17.78mm / 0.7"
- Hole pitch: 2.54mm / 0.1"
- Quantity: 3 PCBs per pack
