These nut plates can really make for a compact build!
They attach to the end of a length of extrusion and act as a carriage nut for a suitable leadscrew - allowing you to 'hide' the leadscrew inside the length of extrusion. These are compatible with our 20x40, 20x60 and 20x80mm extrusion.
They fix in place with two M5 low profile screws, we'd recommend 6mm or 8mm. You'll need to tap the ends of the extrusion first - don't forget to pick up a drill tap from the store!
- Suits leadscrew with 2 starts, 2mm pitch, 8mm lead.
- 20mm between mounting holes

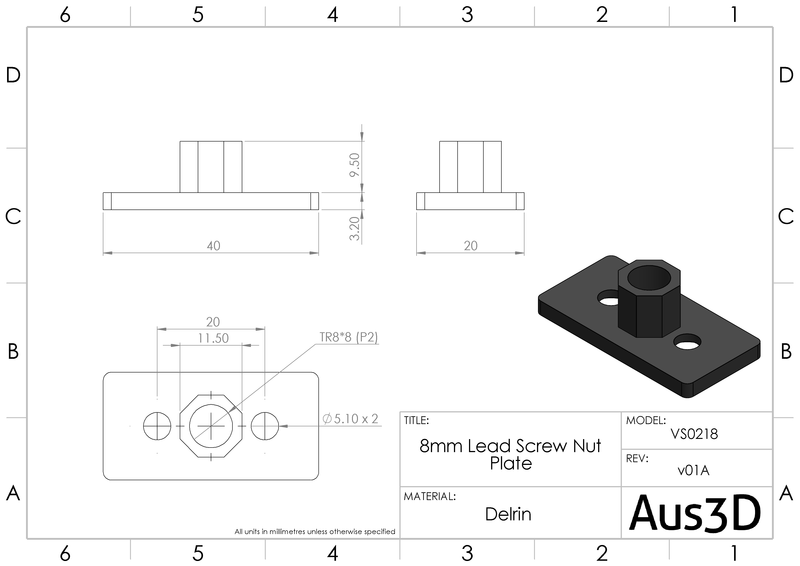

- See included drawing for all dimensions
