Extreme Mini V-Wheel Kit

2 reviews

Price:
Sale price$0.00

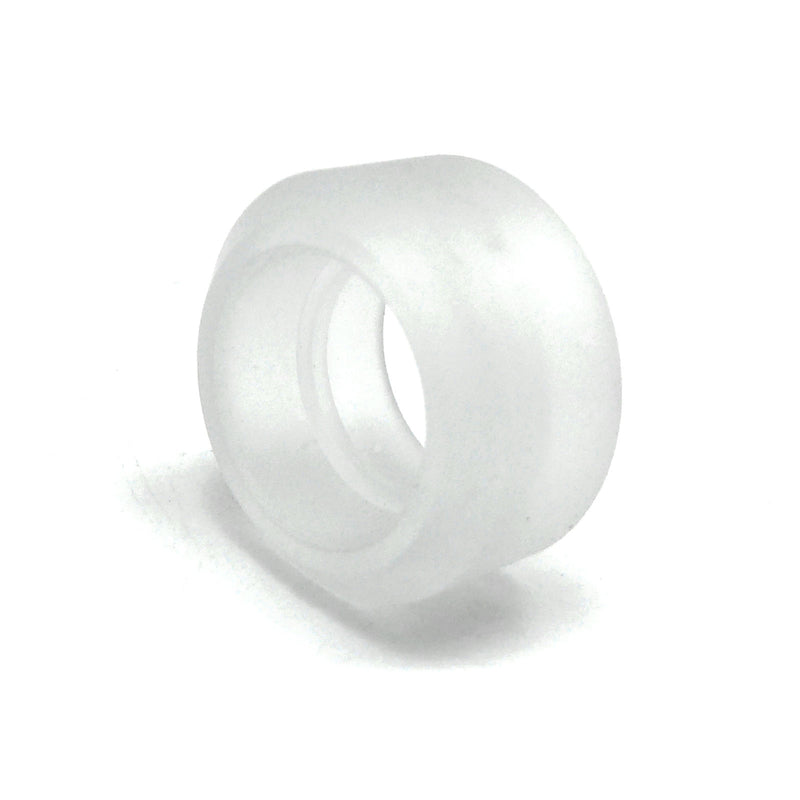

These Extreme Mini-V Wheels pair with our Mini V-Wheel plates to create a compact carriage, capable of smooth linear motion along our V-Slot aluminium extrusion.

These are our extreme wheels, which are designed for heavy-duty use. They're made of a hard and clear polycarbonate material, which is much more resistant to compression or wear than the Delrin used to make our regular wheels.

Each and every wheel we sell is carefully and consistently milled to achieve a high degree of precision and tolerance!

Each wheel kit includes:

  • 1 x Extreme Mini V-Wheel
  • 2 x MR105ZZ Bearings (5x10x5)
  • 2 x 5mm Precision Shim (8x5x1)
  • 1 x M5 Hex Locknut

You'll also want to grab suitable screws and spacers to suit your build:

  • Low Profile M5 Screw - either 25mm for use with up to 1/8" thick plates, or 30mm for up to 1/4" plates
  • Aluminium Spacers - either 6mm or 1/4", depending on your preference
  • Eccentric Spacers - either 6mm or 1/4", to match the standard spacers

Usually, for a standard gantry, you'll want half of the wheels with standard spacers and half with eccentric spacers.

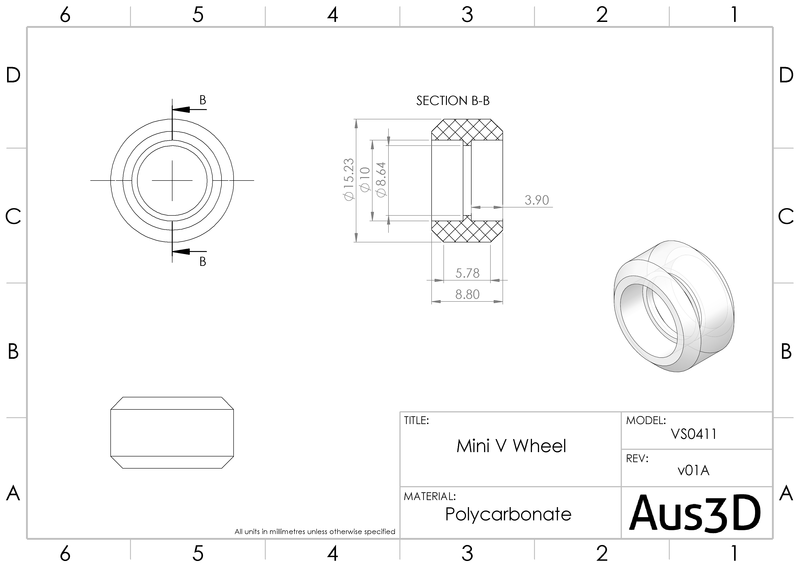

Specifications

  • Material: Polycarbonate, clear
  • Outer Diameter: 15.23mm
  • Inner Diameter: 10.0mm
  • Width: 8.8mm
  • Rockwell Hardness: M75
  • Compressive Strength: 86Mpa
