Description
These Extreme Mini-V Wheels pair with our Mini V-Wheel plates to create a compact carriage, capable of smooth linear motion along our V-Slot aluminium extrusion.
These are our extreme wheels, which are designed for heavy-duty use. They're made of a hard and clear polycarbonate material, which is much more resistant to compression or wear than the Delrin used to make our regular wheels.
Each and every wheel we sell is carefully and consistently milled to achieve a high degree of precision and tolerance!
This is a single wheel, and will also require two bearings (MR105-ZZ), two shims (8x5x1), and various other parts to be used in most builds. Save yourself some time and money with our full kits!

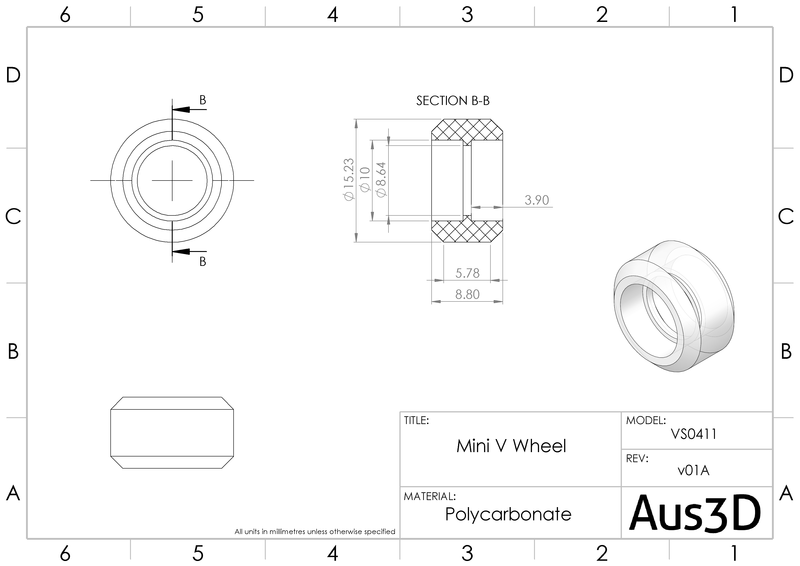

Specifications
- Material: Polycarbonate, clear
- Outer Diameter: 15.23mm
- Inner Diameter: 10.0mm
- Width: 8.8mm
- Rockwell Hardness: M75
- Compressive Strength: 86Mpa
