- Nozzle Sizes

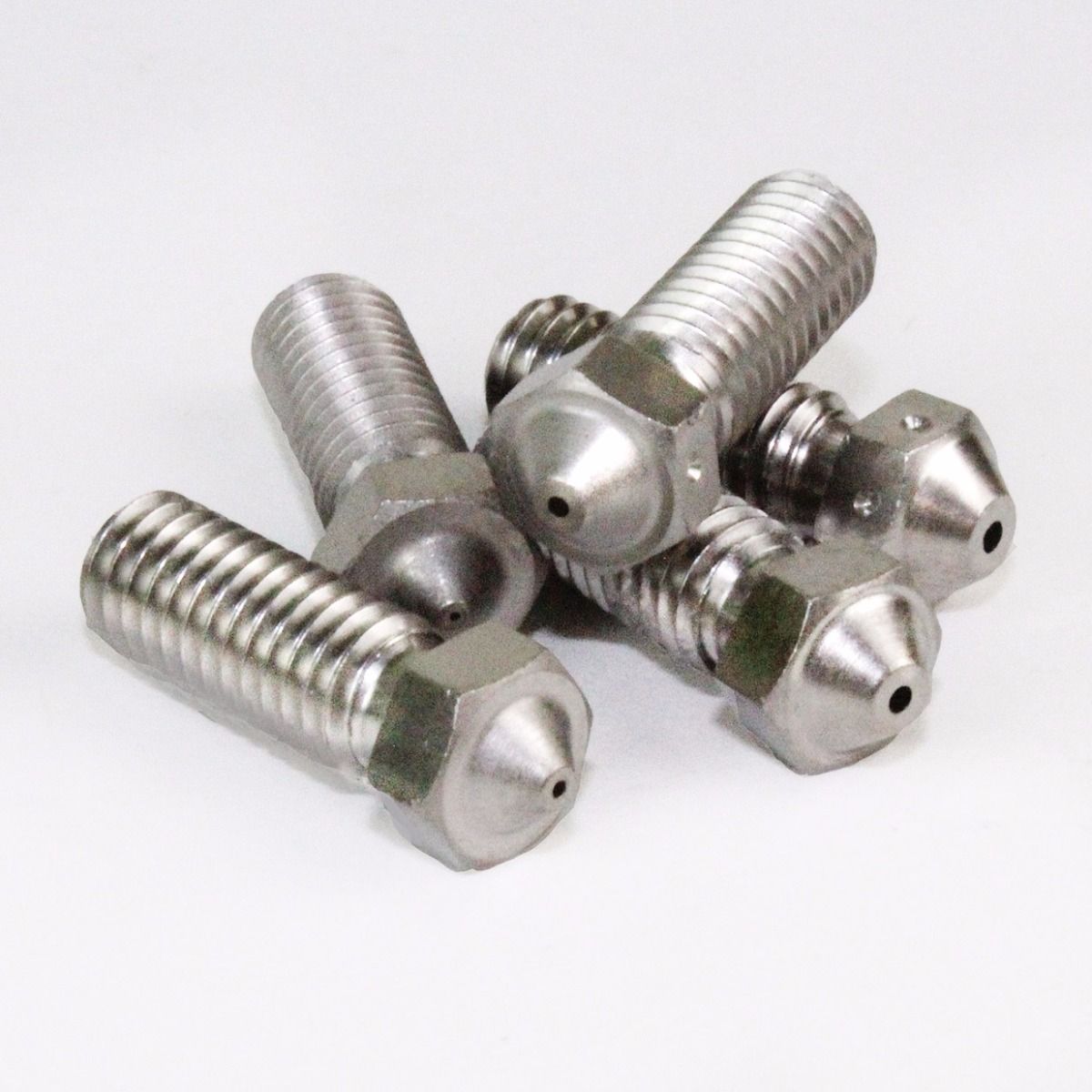

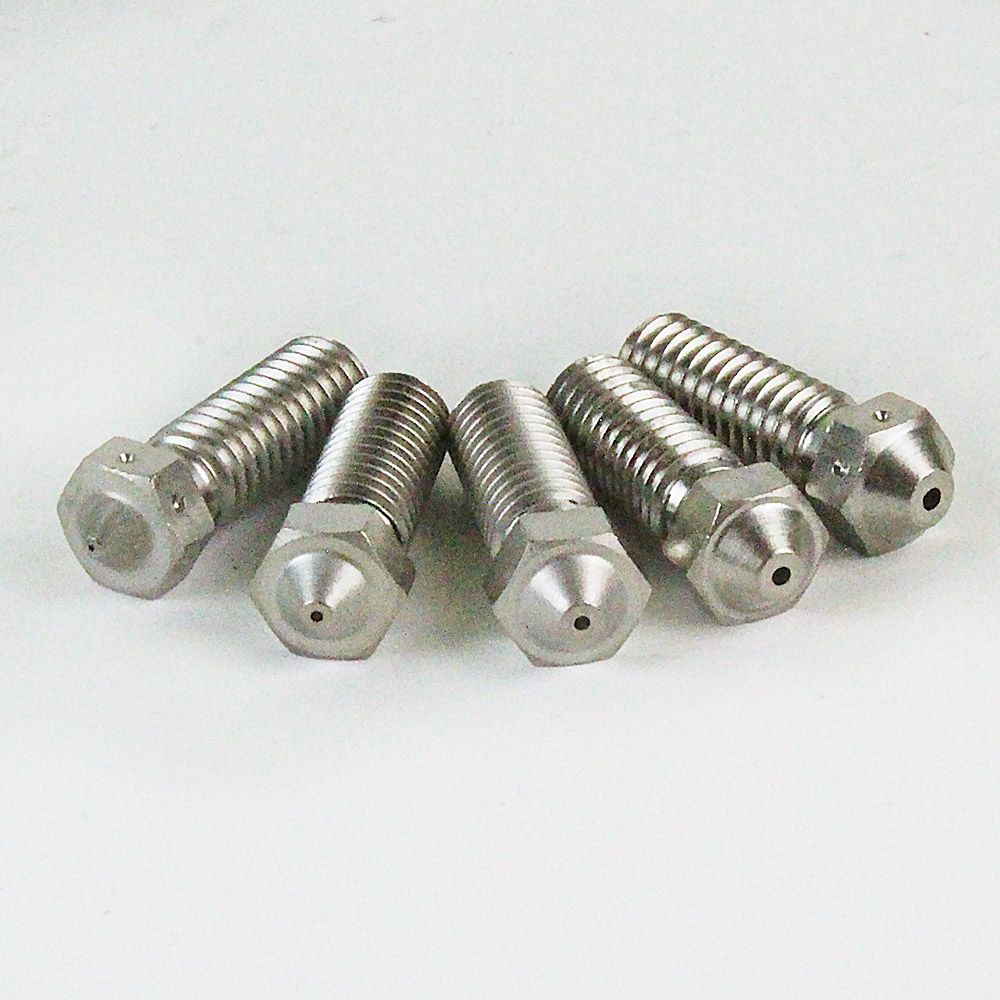

These nozzles are engineered for ultimate high-temperature performance. Made from a special high-temperature copper-alloy with a softening point of well above 500°C, and with much-increased thermal conductivity, these copper nozzles are perfect for high-temperature applications, while working perfectly with everyday filaments like PLA, ABS and spoolWorks EDGE.
In addition to high-temperature performance, these nozzles have an advanced nickel-based plating, considerably reducing the adhesion of plastic to the nozzle. This is great for everyday filaments keeping things clean and shiny, but is particularly important at temperatures above 300°C where a silicone sock can't be used.
Copper has more than 3x the thermal conductivity of brass, and the copper alloy we use has been hardened and treated to reduce the oxidation that occurs in copper at high temperatures. The higher thermal conductivity will also slightly increase your heat-up times and can provide tighter temperature control.
This copper-alloy is very temperature resilient, and will not start to soften or anneal until way beyond 500°C, making it perfect for the high-temperature printing that other nozzles can't handle.
These nozzles are used with the Volcano block and packs to print at large layer heights and extremely high flow rates.
E3D Volcano nozzles are super-fast printing nozzles for use with the Volcano block and packs to print large layer heights at extremely high flow rates. Volcano nozzles have extra-long heated melt zones for ultimate filament melt speeds. E3D have also carefully crafted the internal geometry to optimise flow and throughput, as well as ensuring the nozzle tip is appropriately sized for flattening down extra wide printed traces.
All nozzles in the series are now individually identifiable with markings on the flats of the hex head making them even more convenient to work with. See the table below for identification.
|NUMBER OF DOTS||DIAMETER|
