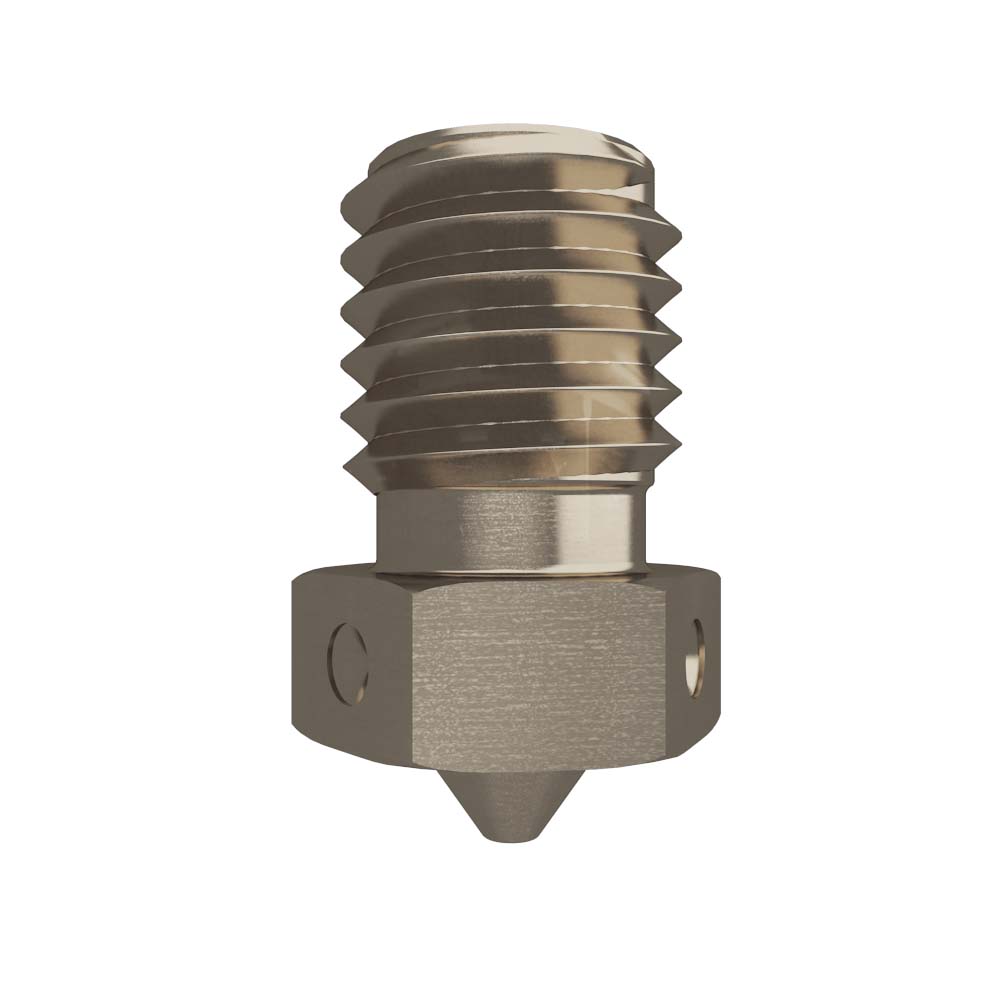

E3D V6 Nozzle - Plated Copper

New E3D V6 Nozzle - Plated Copper

Durable, non-stick, high-temperature performance nozzles. This copper alloy is very temperature resilient, and will not start to soften or anneal until way beyond 500°C, making it perfect for the high-temperature 3D printing that other nozzles can't handle. These nozzles are fully integrated into the E3D Ecosystem and will fit V6, Lite6, and Titan Aero HotEnds, and are compatible with Prusa 3D printers.



These nozzles are engineered for ultimate high-temperature performance. Made from a special high-temperature copper-alloy with a softening point of well above 500°C, and with much-increased thermal conductivity, these copper nozzles are perfect for high-temperature applications, while working perfectly with everyday filaments like PLA, ABS and spoolWorks EDGE.

In addition to high-temperature performance these nozzles have an advanced nickel-based plating, considerably reducing the adhesion of plastic to the nozzle. This is great for everyday filaments keeping things clean and shiny, but is particularly important at temperatures above 300°C where a silicone sock can't be used.

Copper has more than 3x the thermal conductivity of brass, and the copper alloy we use has been hardened and treated to reduce the oxidation that occurs in copper at high temperatures. The higher thermal conductivity will also slightly increase your heat-up times and can provide tighter temperature control.

This copper-alloy is very temperature resilient, and will not start to soften or anneal until way beyond 500°C, making it perfect for the high-temperature printing that other nozzles can't handle.

Read all about it on the E3D blog! Combine with E3D plated copper blocks for the ultimate extrusion pairing. No need for hot tightening, this pairing just works.

M6 thread, suitable for use with the Prusa i3 and i3 MK2, and the Olssen block for Ultimaker.

Number of DotsDiameter
2 Diagonal0.15mm
00.25mm
10.30mm
20.35mm
30.40mm
60.50mm
40.60mm
50.80mm



V6 Nozzles are backwards compatible, so can be used to upgrade your V5 HotEnd. If you are using a v6 heatbreak it is recommended that you use a V6 Nozzle.

Nozzle
Nozzle Type Plated Copper
