Description

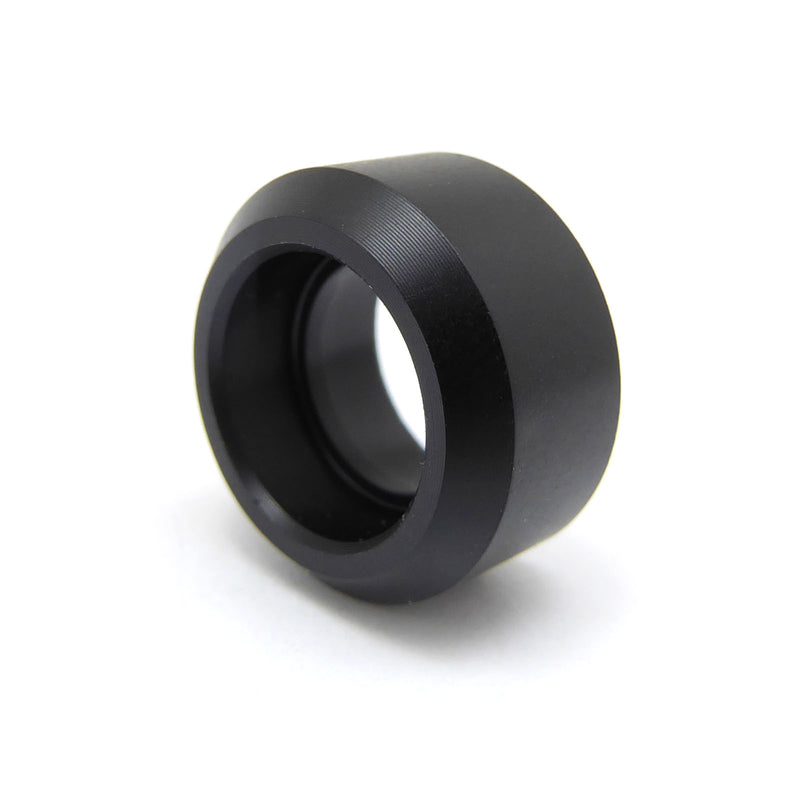

These Delrin Mini-V Wheels pair with our Mini V-Wheel plates to create a compact carriage, capable of smooth linear motion along our V-Slot aluminium extrusion.
For builds involving a lot of weight or force, you might want to check out our extreme polycarbonate mini wheels - they're a little pricier, but much, much stronger!
Each and every wheel we sell is carefully and consistently milled to achieve a high degree of precision and tolerance!
Each wheel kit includes:
- 1 x Mini V-Wheel
- 2 x MR105ZZ Bearings (5x10x5)
- 2 x 5mm Precision Shim (8x5x1)
- 1 x M5 Hex Locknut
You'll also want to grab suitable screws and spacers to suit your build:
- Low Profile M5 Screw - either 25mm for use with up to 1/8" thick plates, or 30mm for up to 1/4" plates
- Aluminium Spacers - either 6mm or 1/4", depending on your preference
- Eccentric Spacers - either 6mm or 1/4", to match the standard spacers
Usually, for a standard gantry, you'll want half of the wheels with standard spacers and half with eccentric spacers.

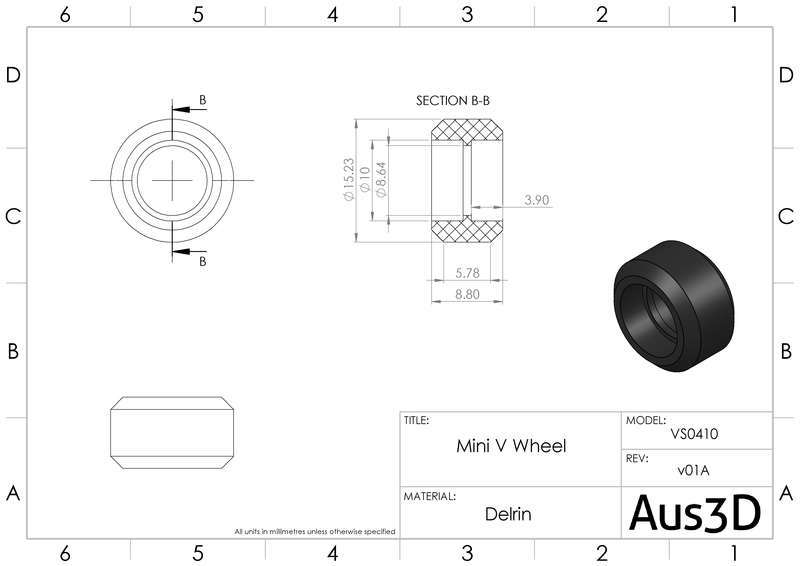

Specifications
- Material: Delrin, black
- Outer Diameter: 15.23mm
- Inner Diameter: 10.0mm
- Width: 8.8mm
- Rockwell Hardness: M80
- Compressive Strength: 63Mpa
