Description

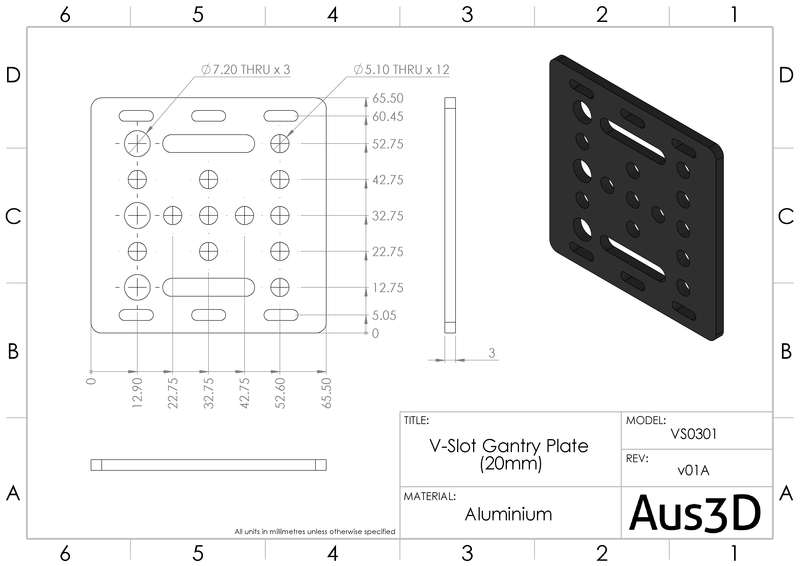

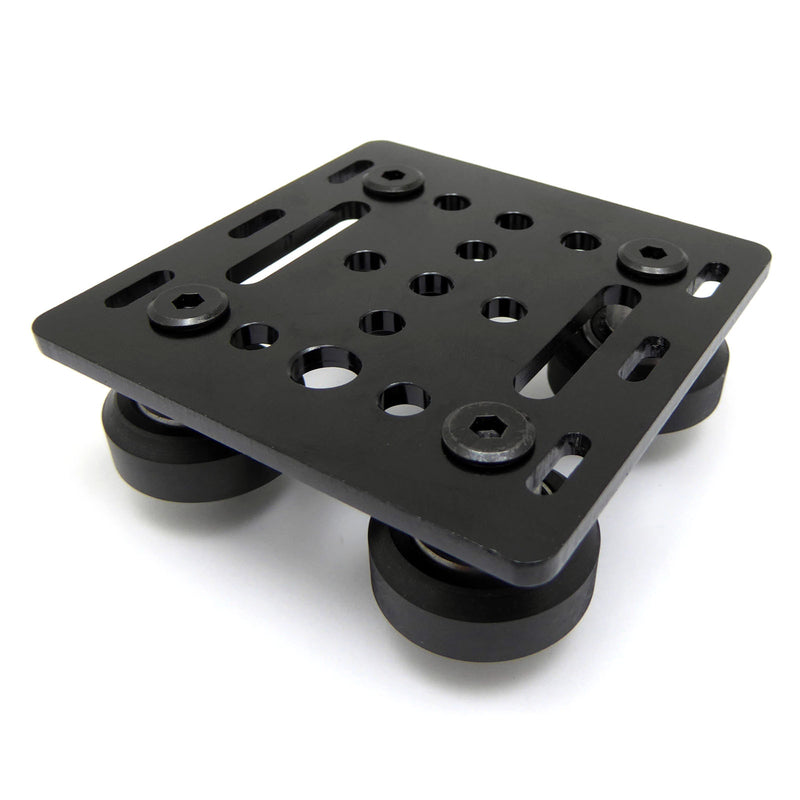

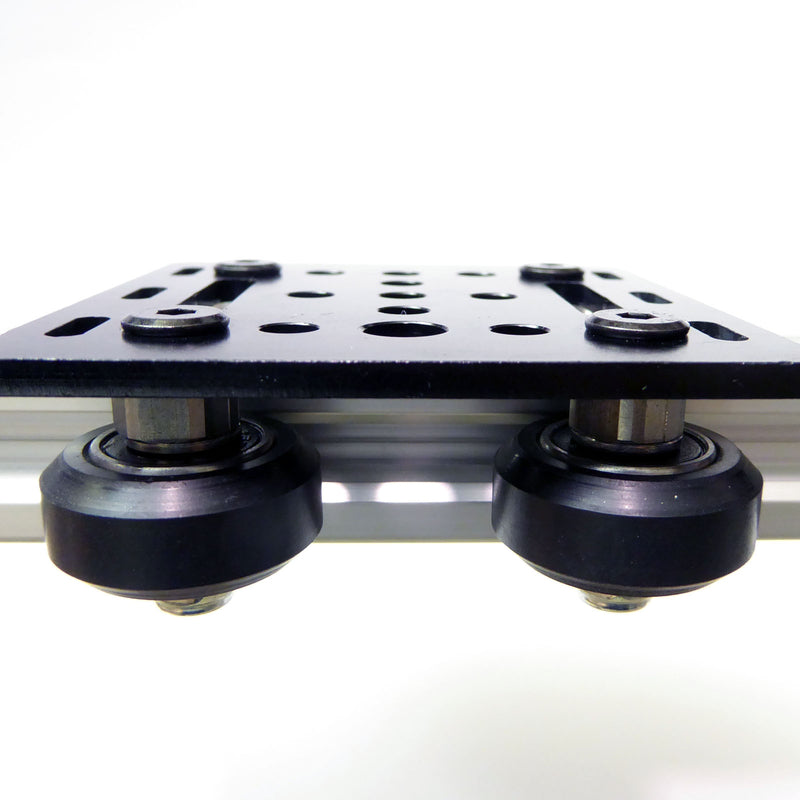

These plates can be used to build a compact gantry that will travel along the 20mm edge of our V-Slot extrusion. They can be used on any side of 20x20mm V-Slot, or the thin sides of 20x40, 20x60 or 20x80 V-Slot.
Three slots along the edges that face 'along' the extrusion make it easy to fix timing belt ends in place. There are also two 5mm wide slots which can be used to mount belts perpendicular to the plate, or anything else you'd like to mount with M5 screws.
