Description

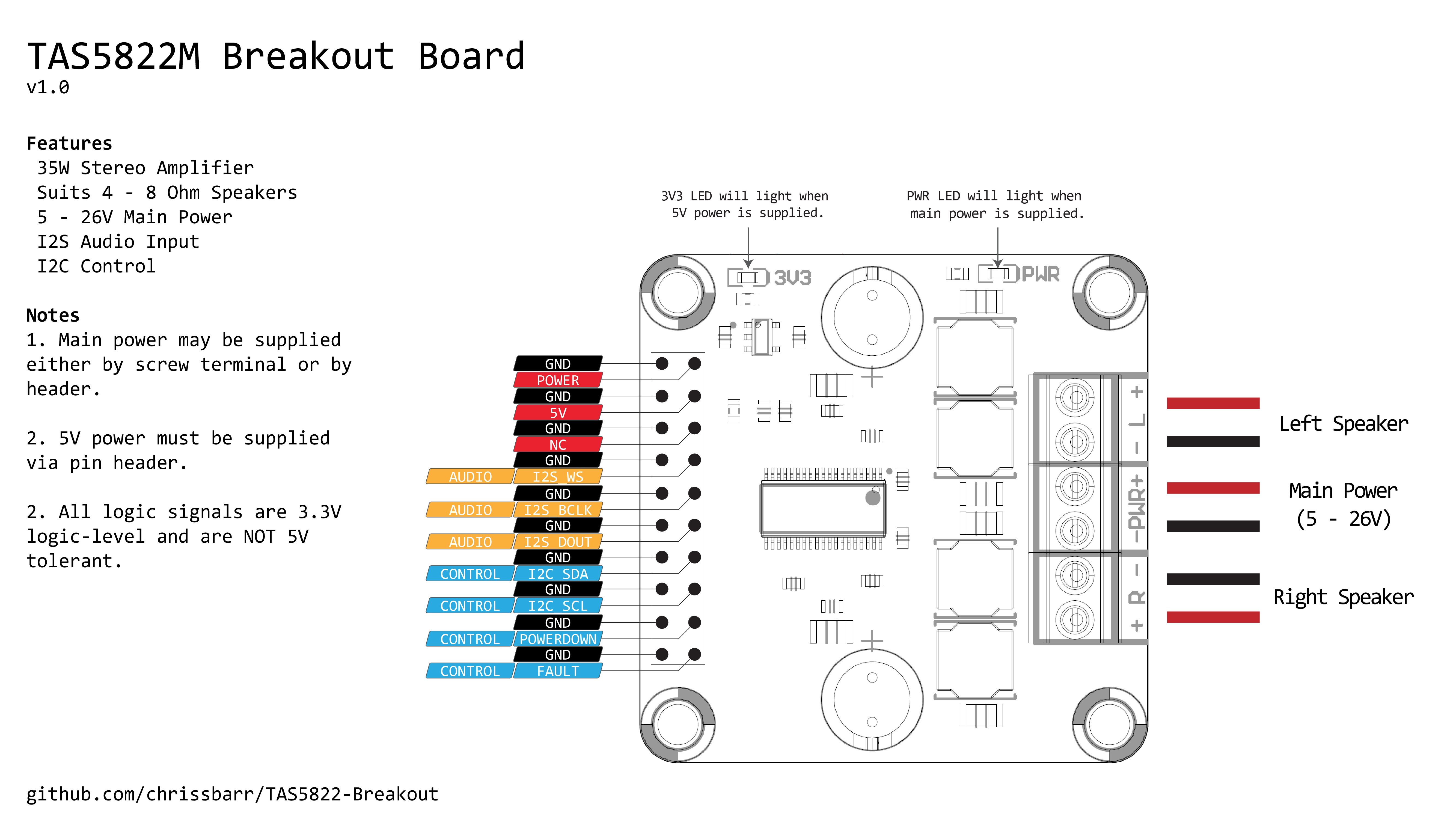

An easy-to-use breakout board for the TI TAS5822 I2S audio DAC.
The TAS5822 is a stereo Class-D digital audio amplifier with I2S audio input and I2C control. It can drive 4/6/8 Ohm speakers at up to 35W.
The TAS5822 is compatible with digital audio sources that can stream data in the I2S format. This includes popular microcontroller families such as ESP32, STM32, or some single-board computers such as the Raspberry Pi.
This breakout board is an easy way to add high-quality digital audio to an embedded project. It delivers an impressive 35W in a compact 40x40mm package!
Screw terminals and a 2x10 pin header are included, but are not soldered to the board. You can either solder them on, or solder wires directly to the board to suit your application.
For more information, including examples on using this board, check out the GitHub page here.
Specifications
- Dimensions: 40 x 40 mm
- Mounting holes: M3, 34 x 34 mm square
- I2S Audio Interface
- I2C Control Interface
- 5 - 26V Audio Power Supply
- 5V Logic Power Supply
- 4/6/8 Ohm Speaker Compatible
- Up to 35W of output power
Contents
- 1 x TAS5822M Breakout Board
- 1 x 2x10 Pin Header (loose)
- 3 x 2 Pin Screw Terminal (loose)
