Description
Beguiled by a fancy new chip that is only available in a SOIC or MSOP/(T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has an 8-TSSOP/8-MSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 8-SOIC. Solder your chip to either side and you're ready to rock on any solderless breadboard.

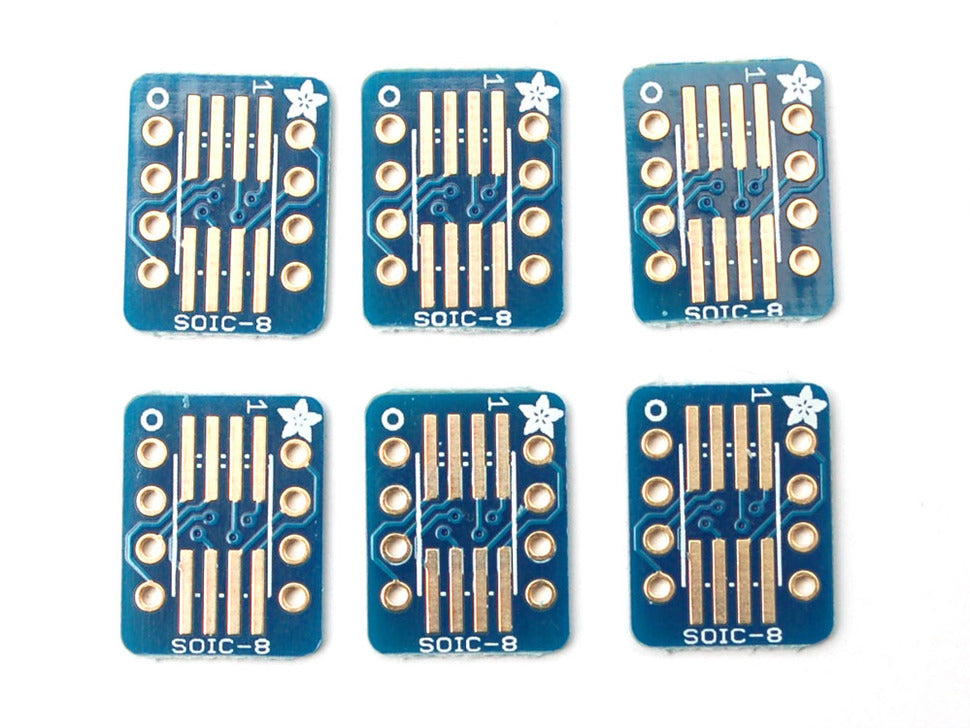

Each item comes with six PCBs, each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. We made these on half-thickness PCBs, with 0.3" spacing between the two rows.
Specifications
- Compatible packages: SOIC-8, MSOP-8 or TSSOP-8
- Row spacing: 7.62mm / 0.3" (half-thickness PCB)
- Hole pitch: 2.54mm / 0.1"
- Quantity: 6 PCBs per pack
