Knock together a linear axis in no time with these handy motor mount plates!

These suit both NEMA 14 and NEMA 17 stepper motors, and easily mount to our V-Slot extrusion. These pair perfectly with our idler pulley plates - add one of those, some belt, and a carriage, and you've got yourself a linear axis!

Specifications

  • 6063-T6 Aluminium
  • Black Anodised Finish
  • 82x39.5mm
  • 3mm (~1/8") thick

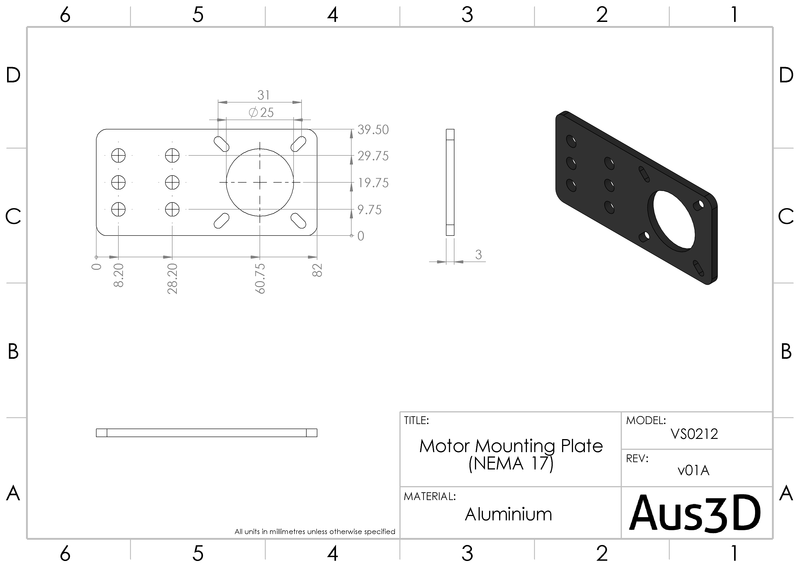

  • See the attached drawing for full dimensions
