Description
These precision-made full-sized wheels are compatible with our V-Slot aluminium extrusion, and can be used to achieve smooth linear motion.
These are our extreme wheels, which are designed for heavy-duty use. They're made of a hard and clear polycarbonate material, which is much more resistant to compression or wear than the Delrin used to make our regular wheels.
We recommend these wheels for any build where there's a lot of force or weight involved. Due to their improved resistance to wear-and-tear, we really like to use these wheels whenever we can - the only downside compared to our standard wheels is that these cost a little more.
Each and every wheel we sell is carefully and consistently milled to achieve a high degree of precision and tolerance!
This is a single wheel, and will also require two bearings (625-2RS), two shims (10x5x1), and various other parts to be used in most builds. Save yourself some time and money with our full kits!

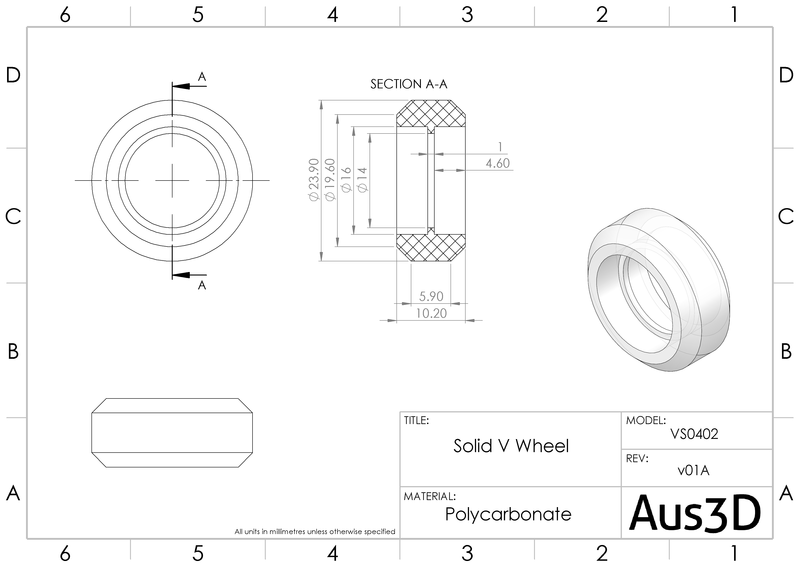

Specifications
- Material: Polycarbonate, clear
- Outer Diameter: 23.9mm
- Inner Diameter: 16.0mm
- Width: 10.2mm
- Rockwell Hardness: M75
- Compressive Strength: 86Mpa
