Description

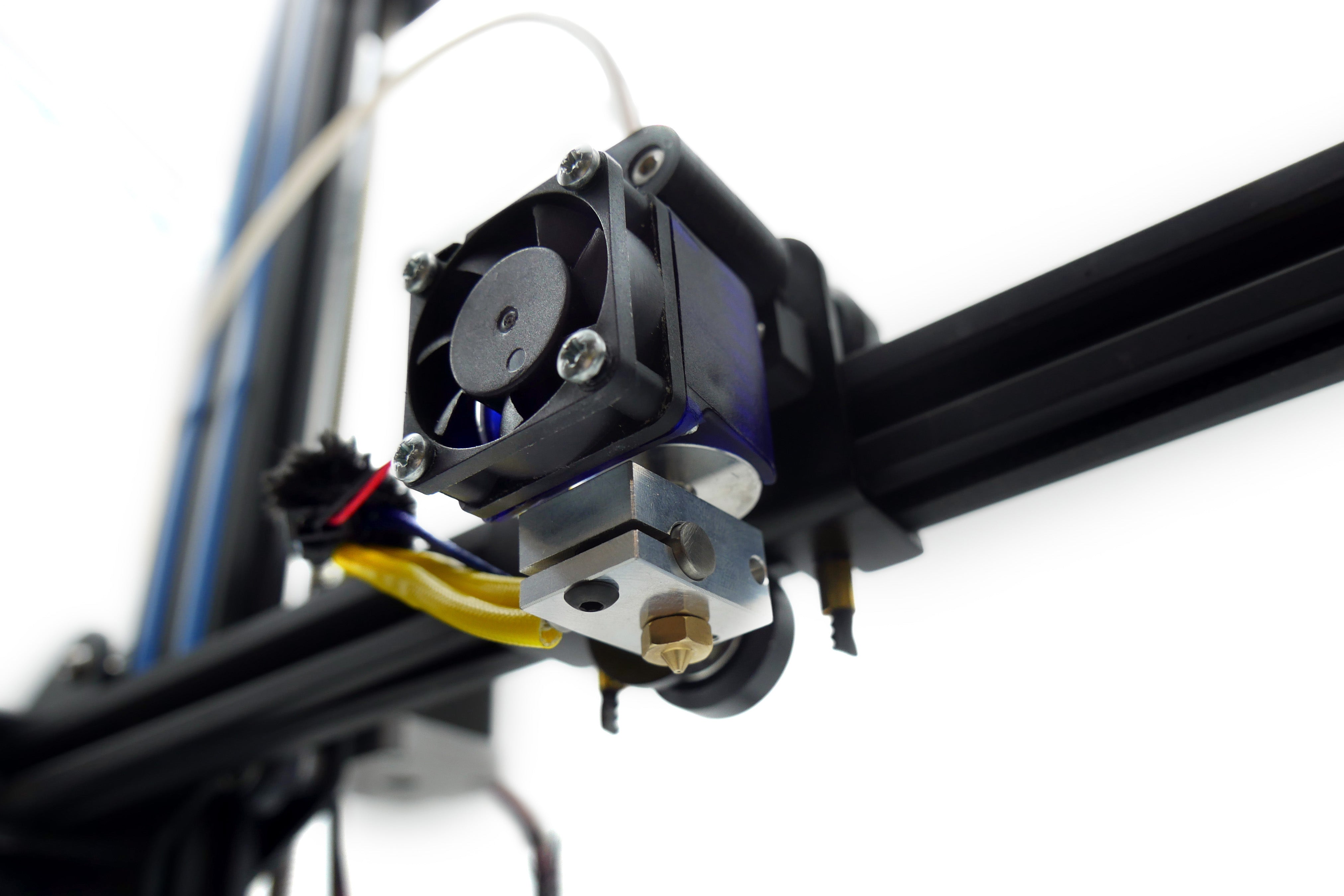

The V6 is E3D's flagship HotEnd featuring an all-metal design with high-temperature performance. The V6 is an incredibly versatile HotEnd allowing a wide variety of filaments to be used as standard. Whether you'd like to experiment with more advanced materials or print at different resolutions and sizes, the V6 ecosystem is suited for every application.
High-temperature performance
The benefit of an all-metal design means the V6 can comfortably reach 300°C with the supplied thermistor. If you'd like to print at higher temperatures (up to 500°C) then you can simply swap the thermistor with a PT100 or thermocouple (may require additional electronics). This allows you to print standard materials such as PLA, PETG and ABS as well as high-temperature materials such as Polycarbonate, Ultem, Nylon and PEEK.
Easy to use
The V6 features a cartridge-style heater block, enabling a no-fuss approach to replacing both heater cartridges and temperature sensors. Replacement thermistors, PT100s and thermocouples can be slid into place and secured with a grub screw, ensuring maintenance is simple and painless.
Precise
The all-metal HeatBreak maintains a sharp thermal break to provide better control over filament output; improving start and stops when extruding, as well as more effective retraction, combating oozing and stringing. The all-metal HeatBreak features a refined internal surface finish to reduce extrusion force and improve the reliability of retractions.
Key Features
- All metal HeatBreak
- Maximum temperature: 300°C
- Cartridge style heater block
- Groove mount
Specifications
- Compatible filament: 1.75mm and 2.85mm
- Maximum temperature: 300°C (up to 500°C with PT100 or thermocouple)
- Heater voltage: 12V or 24V
Contents
- 1 x V6 HeatSink (1.75mm or 2.85mm)
- 1 x V6 HeatBreak (1.75mm or 2.85mm)
- 1 x V6 Nozzle (1.75mm or 2.85mm)
- 1 x V6 Fan Duct
- 1 x V6 Aluminium HeaterBlock
- 1 x Heater Cartridge (12V or 24V)
- 1 x Thermistor Cartridge
- 1 x Thermistor Extension Cable
- 1 x 30 x 30 x 10mm Fan (12V or 24V)
- 1 x Thermal Compound
- 1 x V6 Fixings Kit
- 1 x V6 Silicone Sock
- 1 x PTFE Tubing (100mm or 800mm)
