Delrin Solid V-Wheel Kit

1 review

Price:
Sale price$6.95

Description

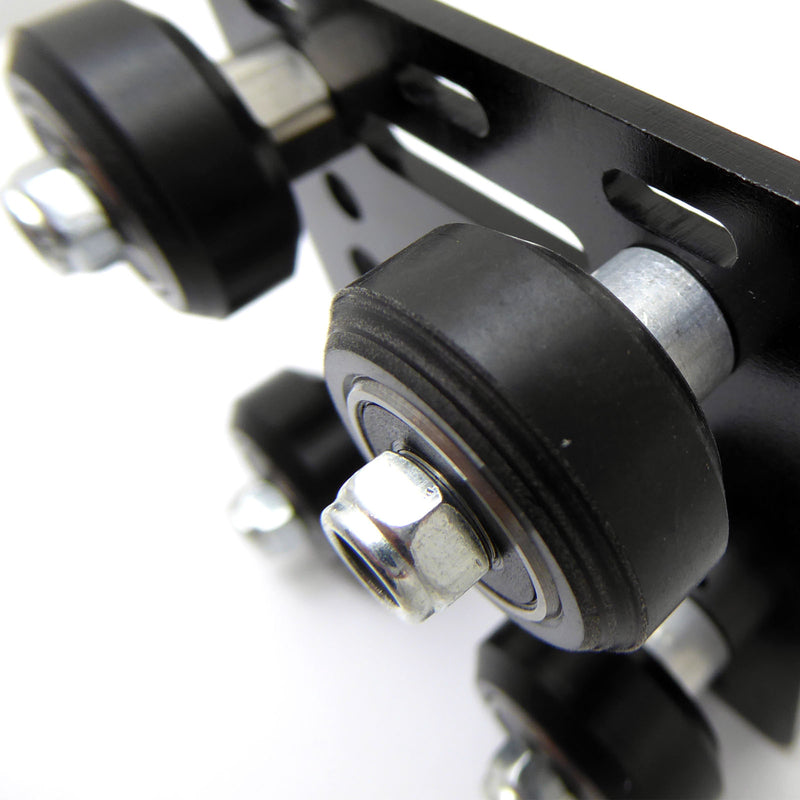

These precision-made full-sized wheels are compatible with our V-Slot aluminium extrusion, and can be used to achieve smooth linear motion.

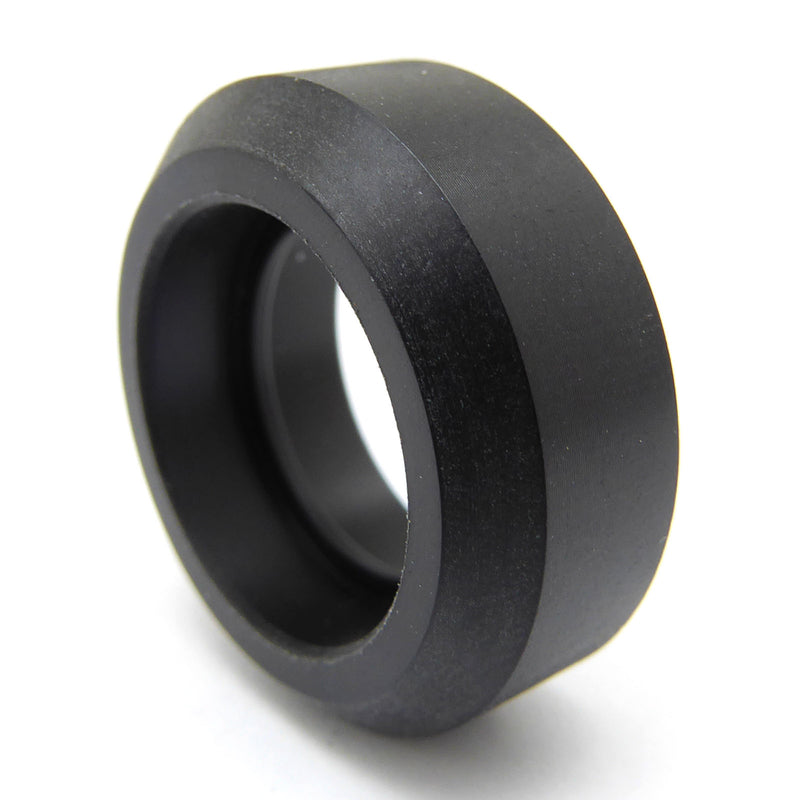

These are solid wheels, which means they're resistant to deflection or deformation. They're a touch sturdier than our regular 'V' wheels, with the tradeoff that they're slightly more expensive. We recommend these wheels for most builds, as they're a great balance of price and performance.

For builds involving a lot of weight or force, you might want to check out our extreme polycarbonate wheels - they're a little pricier again, but much, much stronger!

Each and every wheel we sell is carefully and consistently milled to achieve a high degree of precision and tolerance!

Each wheel kit includes:

  • 1 x Solid V-Wheel
  • 2 x 625-2RS Bearings (5x16x5)
  • 2 x 5mm Precision Shim (10x5x1)
  • 1 x M5 Hex Locknut

You'll also want to grab suitable screws and spacers to suit your build:

  • Low Profile M5 Screw - either 25mm for use with up to 1/8" thick plates, or 30mm for up to 1/4" plates
  • Aluminium Spacers - either 6mm or 1/4", depending on your preference
  • Eccentric Spacers - either 6mm or 1/4", to match the standard spacers

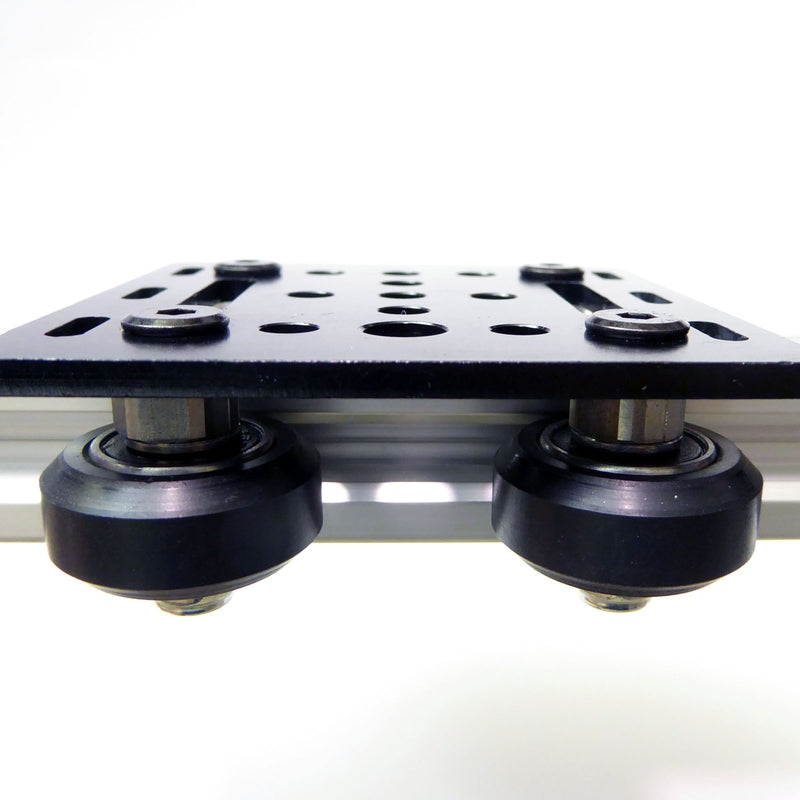

Usually, for a standard gantry, you'll want half of the wheels with standard spacers and half with eccentric spacers.

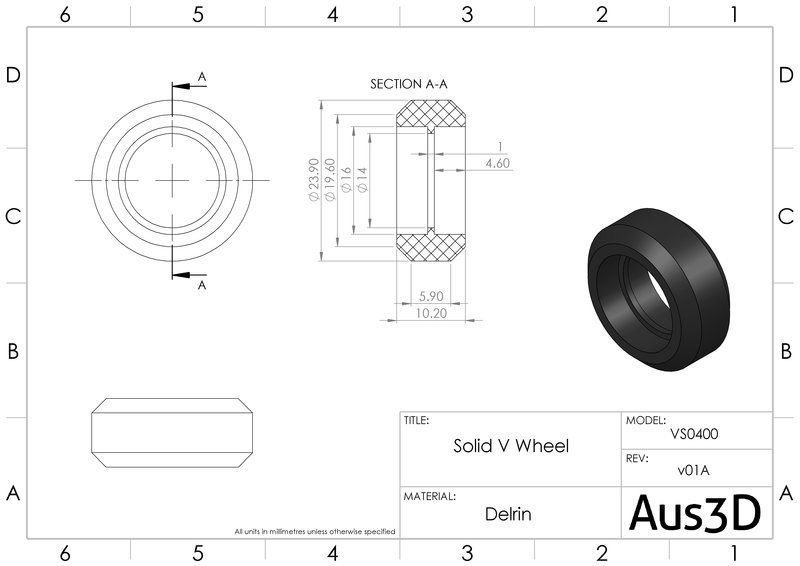

Specifications

  • Material: Delrin, black
  • Outer Diameter: 23.9mm
  • Inner Diameter: 16.0mm
  • Width: 10.2mm
  • Rockwell Hardness: M80
  • Compressive Strength: 63Mpa
